Fuzzamoto: Non-Determinism

This is part 2 in a series on Fuzzamoto, a fuzz testing tool for Bitcoin full nodes. In part 1, we covered the motivation behind Fuzzamoto and gave an overview of its design and architecture. In this post, we’ll dive deep into one of the most critical challenges for effective fuzzing: achieving deterministic test execution.

Every software engineer will, at some point in their career, run into a bug (or other observed behavior) that doesn’t reproduce. That one bug in CI that you just cannot reproduce locally, or that fuzz crash that you re-run through the harness and it surprisingly does not crash again. Why does this happen? Most likely, because your software is non-deterministic. As many engineers know, this can be very annoying and time-consuming.

For fuzzing specifically, non-determinism is not only annoying (in the case of non-reproducible findings), but it also actively degrades the efficiency of your fuzzing and may even prevent you from finding bugs entirely. Really? Yes, really. This UBSan issue was only found by oss-fuzz after we improved the determinism of the fuzzing harness.

Sources of Non-Determinism

Before looking at how to avoid or reduce non-determinism, let’s look at some real world examples of non-deterministic code and where the non-determinism originates.

auto now{GetTime<std::chrono::seconds>()};
EvictExtraOutboundPeers(now);
if (now > m_stale_tip_check_time) {
    ...
}

The code above is not deterministic because each time we run the application or test that executes this code, the time (returned by GetTime) might be different, leading to different code paths being executed. What about this next example?

const auto delta = 10min + FastRandomContext().randrange<std::chrono::milliseconds>(5min);
scheduler.scheduleFromNow([&] { ReattemptInitialBroadcast(scheduler); }, delta);

Scheduling some task at 10 minutes plus a random offset in the future is not going to be deterministic, but there’s actually more here. The operating system’s thread scheduler relies on e.g. time and hardware interrupts, so the exact point at which ReattemptInitialBroadcast will run is not deterministic either. And who knows, maybe there’s a one-in-a-billion chance that some other task runs first, and only then does a bug manifest.

Ok, maybe time and thread scheduling is too on the nose, but what about this?

struct IteratorComparator
{
    template<typename I>
    bool operator()(const I& a, const I& b) const
    {
        return &(*a) < &(*b);
    }
};
...
std::sort(iters.begin(), iters.end(), IteratorComparator());

Have a close look at the comparison in the comparator! Comparing pointers is also non-deterministic for various reasons (e.g., ASLR, order of previous allocations, …) and may lead to non-deterministic ordering of iters in this example.

All of the above non-determinism sources actually have one common source, which is the hardware the code is executed on. Time may be sourced from the hardware’s timestamp counter with e.g. the rdtsc instruction, randomness may be sourced with e.g. the rdrand or rdseed instructions and scheduling may be influenced by hardware interrupts.

There are obviously a ton more sources of non-determinism, but fundamentally they (almost) all arise from interactions with the real world, i.e. the hardware. Networking, disk operations and various CPU caches (to name a few) are all non-deterministic.

The only source of non-determinism that I can think of (specifically in the context of fuzzing), that I wouldn’t categorize as being caused by the hardware, is global state. In my experience this is a very common source of non-determinism, especially in classic in-process fuzz tests:

PeerManager* g_peer_manager = nullptr;

extern "C" int LLVMFuzzerInitialize(int* argc, char*** argv) {
    g_peer_manager = new PeerManager();
    return 0;
}

extern "C" int LLVMFuzzerTestOneInput(const uint8_t* data, size_t size) {
    g_peer_manager->ProcessMessage(data, size);
    return 0;
}

The above is an abbreviated version of a fuzz test that exists in Bitcoin Core today. The problem here is that g_peer_manager is a global variable and as such accumulates state each time the fuzz harness is executed (i.e. processing some message might change peer manager state). As a result, executions will be non-deterministic. Each execution depends on the sequence of executions before it. In-process fuzzing engines (e.g. libFuzzer) are designed under the assumption that the harness is a pure function, and the above clearly violates that assumption.

Workarounds

Now that we have an overview of non-determinism sources, we can get into how we can reduce non-determinism for our testing purposes.

Full determinism (i.e. outcome and all intermediate machine states are replayable every time), is hard to achieve in a general and practical way. Full emulation is slow. Deterministic hypervisors are hard to build. For Fuzzamoto I’ve decided to take the practical path of only dealing with some of the more obvious and easy to deal with non-determinism sources. The three main sources of non-determinism I have battled with so far are time, RNG, and state.

Time & RNG

For dealing with time and RNG, my first approach was to LD_PRELOAD libraries such as libfaktime and libfakerand. These are libraries that stub out certain libc functions related to time or randomness in favor of user-controlled deterministic ones. Unfortunately, Bitcoin Core uses certain libc functions that aren’t implemented by them and also uses inline assembly to make use of certain CPU instructions:

#elif !defined(_MSC_VER) && (defined(__x86_64__) || defined(__amd64__))
    uint64_t r1 = 0, r2 = 0;
    __asm__ volatile ("rdtsc" : "=a"(r1), "=d"(r2));
    return (r2 << 32) | r1;
#else

We could just patch this out and the libraries could be extended to support the missing libc functions, and that may be an avenue to explore, but for now I’ve opted for simpler workarounds.

For now, I’ve applied a one-line patch to reduce non-determinism caused by Bitcoin Core’s internal RNG. The patch makes the RNG use a fixed seed for each instantiation of a randomness context.

For dealing with time, we can use Bitcoin Core’s mocktime functionality, which allows us to use a RPC to set the time the node observes. Using the mocktime RPC causes time to freeze (at the time specified by the RPC invocation) for the node, which can be good to control the time at which e.g. p2p messages are processed. However, it does not realistically simulate time passing.

Obviously, these workarounds are not a general solution as they are specific to Bitcoin Core. For fuzzing alternative full node implementations, such as btcd (written in Go), we need more custom patches. Libc stubbing also does not work for e.g. programs written in Go, as they do not depend on libc. Ideally, there would be some way to let the execution environment control what time applications observe, no matter what language they are implemented in.

Tackling State

In Fuzzamoto’s testing model we’re not dealing with the classic in-process fuzz tests as mentioned above. Instead we have a whole guest VM with application daemons under test and we need to be able to start each fuzz execution from the same state. We could stop the VM, wipe all its data and restart it each time but that is obviously going to be really slow.

As mentioned in Part 1, for dealing with state Fuzzamoto relies on Nyx as its execution backend, which allows us to snapshot the desired starting state and quickly reset to it whenever we need.

Nyx itself is built on QEMU and uses KVM to run natively on the host CPU. Performance wise, the biggest challenge with creating whole VM snapshots is the VM’s memory itself. A naive implementation would simply copy all of the memory but that would be gruesomely slow as we might be dealing with gigabytes of memory. Nyx manages to make this performant by using a copy-on-write mechanism, which only allocates new memory pages when the guest attempts to modify memory in the root snapshot. Resetting a VM then just boils down to resetting the modified pages (as opposed to resetting all pages). The CoW mechanism is also really useful for scaling the fuzzing across many cores, as the full memory for the guest is allocated once while each “child” VM only allocates modified memory.

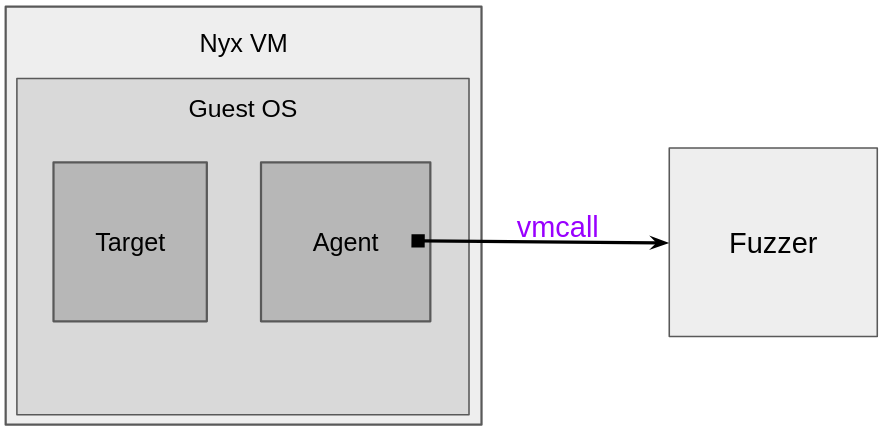

At a high-level, fuzzing with nyx involves a target (code under test), an agent inside the Nyx VM, and a fuzzer outside the VM. The agent (a Nyx concept) facilitates communication between the test inside the VM and the fuzzer on the outside. For this, Nyx provides a vmcall interface, which lets the test reach out to the fuzzer for the following methods (among others): “take a snapshot of the VM”, “reset the VM to the snapshot state”, “give me the next fuzz input”, “the last input triggered a bug”.

I took inspiration from Mozilla’s Nyx agent interface design, to design a custom agent for Fuzzamoto. My agent provides the following interface to the tests:

unsafe extern "C" {
    pub fn nyx_init() -> usize;
    pub fn nyx_get_fuzz_input(data: *const c_uchar, max_size: usize) -> usize;
    pub fn nyx_skip();
    pub fn nyx_release();
    pub fn nyx_fail(message: *const c_char);
    pub fn nyx_println(message: *const c_char, size: usize);
}

nyx_get_fuzz_input takes the snapshot, requests the fuzz input and marks the point to which the VM will reset to if nyx_skip, nyx_release or nyx_fail is called. This API can then be used by the test harnesses to control execution, VM state, and report bugs.

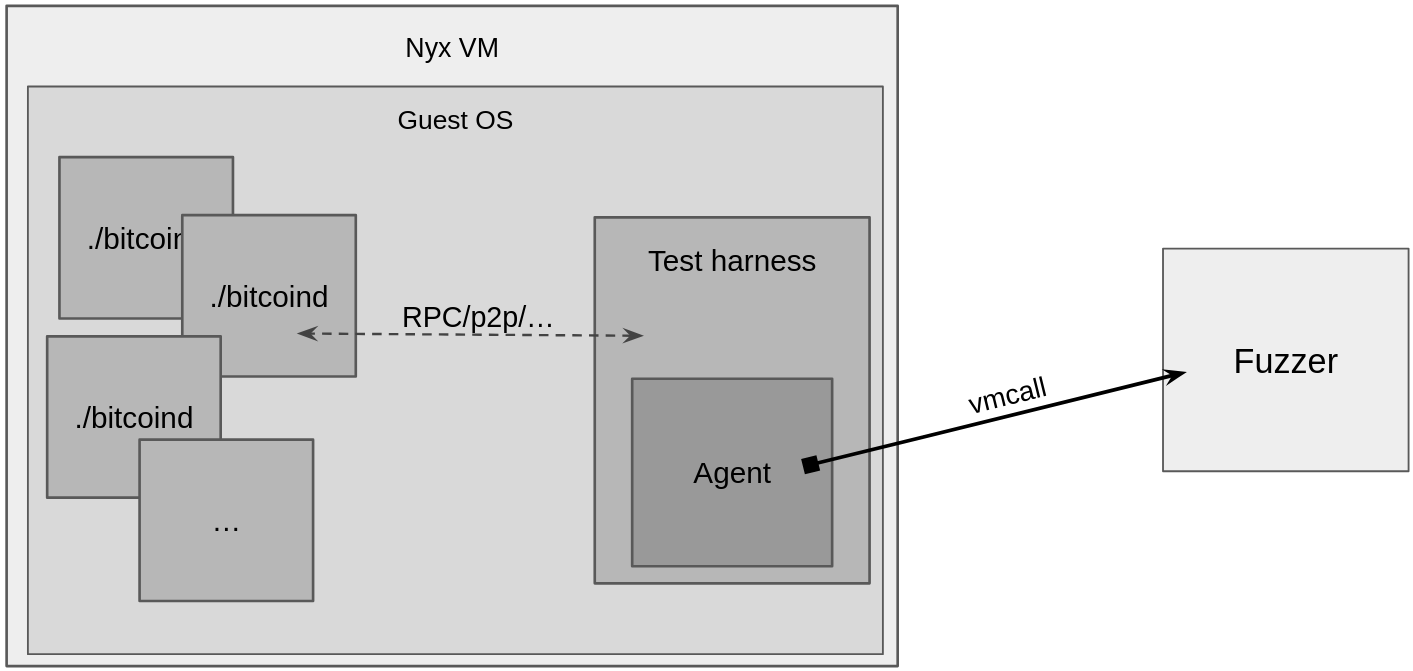

Putting it all together, the rough high-level of architecture for Fuzzamoto looks like this:

Conclusion

While achieving perfect determinism remains an elusive goal, this approach of combining Nyx’s snapshot capabilities with targeted patches for time and randomness provides enough determinism to make this fuzzing practical and effective. While not without limitations, the ability to snapshot and restore complete VM state solves the most fundamental challenge of eliminating state accumulation across test executions without requiring invasive code changes.

The next post in this Fuzzamoto series will cover the custom LibAFL based fuzzing engine that targets the p2p message processing logic of full nodes.
